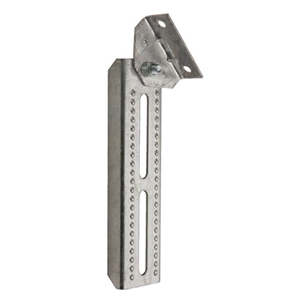

This CE Smith adjustable bracket is designed to support carpeted bunk boards and roller bunks. Hot dip galvanizing for years of use in the harsh marine environment.
This bracket assembly uses bolster bracket-10101G and swivel bracket-10200G.
Bolster bracket: 10" bracket, 11 gauge material, 2-1/2" wide, slots 1/2" wide, swivel hole 1/2" dia., slots 3-3/4" Swivel bracket: 11 gauge material, bunk flange 1-3/8" x 3-1/2", bunk flange holes 3/8" dia., swivel flange 2" tall x 3-1/2", swivel flange hole 1/2" dia., hole centers 2-1/2" Overall assembly length is 11"
Sold as each
This bracket assembly uses bolster bracket-10101G and swivel bracket-10200G.
Sold as each
