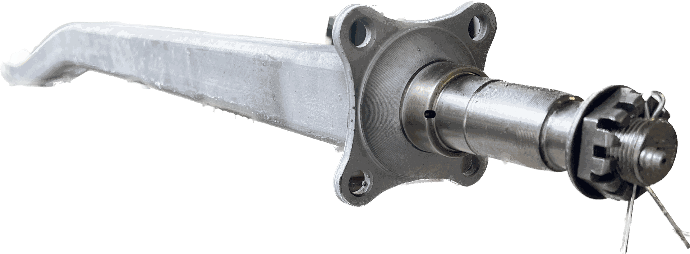

3,500# Trailer Axle, Capacity, 93" Hub Face, 97.5" Oal. 2" Galvanized V-Style Square Tube (Magic Tilt # Ph4766, Ph4767, Ph4760, Ph4793, Ph 4705, 4704-1)
SKU: 201096
Axle: 2" Sq 3500# Galvanized Stock 3" V-Dip Style, Replaces Magic Tilt # Ph4766, Ph4767, Ph4760, Ph4793, Ph 4705, 4704-1
Spring Centers not drilled. See add-on spring seat 19070G and U-Bolt tie plate kit (longer lengths available-check measurement of your existing u-bolts) Note: 1/2" longer axle U-bolt may be needed when spring seats are used)
Spring Center: Per your specs (74" to 84.5" Spring Center Range) With 4-Hole Brake Flange (Approx Outside of Brake Flanges = 86-3/4") Hubs not included Load Rating: 3500 lbs. 3/16" Gauge OAL: 97.5" Track Length: 93" Spindle Size: 1-3/8" x 1-1/16" (Standard Spindle not UFP) Seal: Inner bearing #L68149 outer bearing #L44649
Spring Centers not drilled. See add-on spring seat 19070G and U-Bolt tie plate kit (longer lengths available-check measurement of your existing u-bolts) Note: 1/2" longer axle U-bolt may be needed when spring seats are used)
Similar Venture Part#20016
