Trailer Axle Suspension Kit For 2-3/8" Round Tube Axles (Single Axle, Hubs Not Included) (86541)
SKU: K71-G02-07
Trailer Single Axle Suspension Kit to mount round trailer axles up to 3.5k capacity. This kit includes everything needed to mount a 2-3/8" round tube 3500 lb. axle to your trailer.

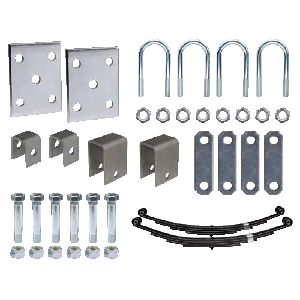

Kits Include: Leaf springs, shackles, shackle bolts, front spring hangers, rear spring hangers and an axle u-bolt tie plate kit.
Details:
2 - AXLE SPRING TIE PLATE FOR 2-3/8" RD AXLE -1.75" WIDE SPRINGS ZINC PLATED
4 - ROUND AXLE UBOLT 1/2-13 X 2.56 X 5.38" ZINC PLATED W/2" THRD
2 - WELD ON REAR SPRING HANGER BRACKETS, 7/8" INSIDE TOP OF HANGER TO HOLE CENTER
2 - WELD ON FRONT SPRING HANGER BRACKETS, 3-1/4" INSIDE TOP OF HANGER TO HOLE CENTER
4 - SHACKLE LINKS 4-1/4" OAL. 3-1/4" HOLE CENTERS
8 - NUT NYLOCK 1/2-13 ZINC PLATED
6 - BOLT SHACKLE 9/16-18 x 3" GR5 ZINC PLATED
6 - NUT NYLOCK 9/16-18 ZINC PLATED
2 - 4-LEAF DOUBLE EYE SPRINGS 1.75" WIDE 25-1/4" 1850LB EA
Kits Include: Leaf springs, shackles, shackle bolts, front spring hangers, rear spring hangers and an axle u-bolt tie plate kit.
Details:
2 - AXLE SPRING TIE PLATE FOR 2-3/8" RD AXLE -1.75" WIDE SPRINGS ZINC PLATED
4 - ROUND AXLE UBOLT 1/2-13 X 2.56 X 5.38" ZINC PLATED W/2" THRD
2 - WELD ON REAR SPRING HANGER BRACKETS, 7/8" INSIDE TOP OF HANGER TO HOLE CENTER
2 - WELD ON FRONT SPRING HANGER BRACKETS, 3-1/4" INSIDE TOP OF HANGER TO HOLE CENTER
4 - SHACKLE LINKS 4-1/4" OAL. 3-1/4" HOLE CENTERS
8 - NUT NYLOCK 1/2-13 ZINC PLATED
6 - BOLT SHACKLE 9/16-18 x 3" GR5 ZINC PLATED
6 - NUT NYLOCK 9/16-18 ZINC PLATED
2 - 4-LEAF DOUBLE EYE SPRINGS 1.75" WIDE 25-1/4" 1850LB EA
